BNG APPLIANCES & PACKAGED SOLUTIONS

Broadband Remote Access Services Router

BNG Packages

Our virtual Broadband Network Gateway (vBNG) is a high-performance software router that runs on white box servers from any x86 vendor. The products below have been designed to fit most common use cases and have low, simplified pricing and are paired with an appropriate reference server configuration.

You can also choose a ready-to-deploy appliance option that includes all necessary hardware and software.

Available as Software or Appliance

20G BNG

20 Gbps Data Plane

2,000 to 16,000 Subscribers (by license)

IPv4/IPv6 Dual-Stack Routing

2x 10GbE Interfaces (Intel X710 Dual Port NIC)

Xeon 4215 2.5GHz, 8 Core, 32GB RAM

Optional CGNAT

Router Manager Optional

40G BNG

40 Gbps Data Plane

2,000 to 32,000 Subscribers (by license)

IPv4/IPv6 Dual-Stack Routing

4x 10GbE Interfaces (Intel X710 Quad Port NIC)

Xeon 4214R 2.4GHz, 12 Core, 32GB RAM

Optional CGNAT

Router Manager Optional

80G BNG

80 Gbps Data Plane

2,000 to 32,000 Subscribers

IPv4/IPv6 Dual-Stack Routing

8x 10GbE Interfaces (2x Intel X710 Quad 10Gb NIC)

Xeon 6208U 2.9GHz, 16 Cores, 64GB RAM

Optional CGNAT

Router Manager Optional

200G BNG

200 Gbps Data Plane

2,000 to 128,000 Subscribers

IPv4/IPv6 Dual-Stack Routing

2x 100GbE Interfaces

Xeon 6330N 2.2GHz, 28 Cores, 64GB RAM

Optional CGNAT

Router Manager Optional

Subscriber Management
PPPoE, IPoE, IPv4/v6 and Dual Stack, RADIUS AAA with COA, Set rate plans and service QoS by RADIUS
QoS and Policy Enforcement
Classification, Policing, Shaping, HQoS and more
L2/L3 Protocols
802.1Q, 802.1AD, L2TP, LACP, VxLAN, GRE, IPSec, OSPF, BGP, IS-IS (and lots more)
Management
Web-based Manager, CLI, NetConf API, SNMP, Syslog

MSI Servers for netElastic Routers

Recommended Server Configurations

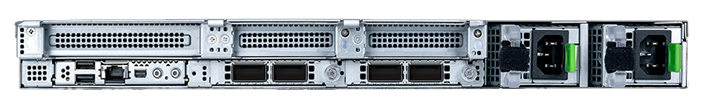

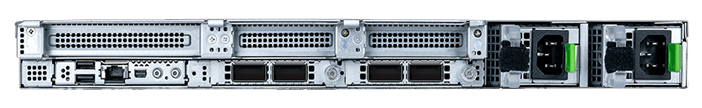

The MSI CX171-S3066 is a high-performance platform supporting 6th Gen Intel® Xeon® Processors making it ideal for netElastic BNG, CGNAT and vRouter solutions up to 4x100G.

Below are netElastic verified configurations for the MSI CX171-S3066. This verification step ensures the compatibility, performance, and reliability of netElastic software when deployed on recommended MSI servers.

MSI CX171-3066 for netElastic BNG & CGNAT routers. See below for recommended CPU and NIC Module options.

CX171-3066 Server Configurations

2x100G Routers, CGNAT, and BNGs

CPU: Intel Xeon 6530P 2.3GHz 32 Core
RAM: 4x 16GB DDR5 RDIMM
Storage: 480GB SSD (MZ-QL248000)
NIC Module 1: Intel E810-2CQDA2
Mgmt NIC: 1GbE BASE-T LOM

4x100G Routers, CGNAT, and BNGs

CPU: Intel Xeon 6530P 2.3GHz 32 Core
RAM: 4x 16GB DDR5 RDIMM
Storage: 480GB SSD (MZ-QL248000)
NIC Module 1: Intel E810-2CQDA2
NIC Module 2: Intel E810-2CQDA2
Mgmt NIC: 1GbE BASE-T LOM

These options are recommended and have been verified by netElastic.
Other Server Models, Vendors, and Sizes Available. Contact Sales to learn more.
