Telecom Certified Solutions on Dell PowerEdge XR Series
Recommended Server Configurations
Here you will find Dell Telecom Certified solutions for netElastic routers, CGNAT, and BNGs. netElastic is a Telecom Certified solution with Dell Technologies. This certification ensures the compatibility, performance, and reliability of netElastic software when deployed on recommended Dell servers.
Dell PowerEdge XR servers are specifically designed for telco and ISP environments. The short-depth, 1RU and 2RU chassis feature front-facing ports with redundant AC or DC power options.
Dell markets the PowerEdge XR as a “ruggedized, MIL-STD and NEBS compliant 1RU expandable server for telecommunications, military, and retail.”
These are ideal for vRouter, CGNAT, and BNG solutions from 4x10G to 4x100G. The following show validated configurations for small to large configurations.
XR11 Server configurations
4x10/25G Routers, CGNAT, and BNGs
- CPU: Intel Xeon Silver 4316 2.3G, 20C/40T
- RAM: 2x 16GB RDIMM
- Storage: 480GB SSD SATA Mixed Use
- NIC: Onboard Broadcom 57504 Quad 10/25GbE SFP28 (non-PPPoE)
Add Intel X710 Quad 10GbE SFP+ Adapter if using for PPPoE - Mgmt NIC: Broadcom 5719 Quad 1GbE BASE-T Adapter
8x10G Routers, CGNAT, and BNGs
- CPU: Intel Xeon Gold 6312U 2.4G, 24C/48T
- RAM: 4x 16GB RDIMM
- Storage: 480GB SSD SATA Mixed Use
- NIC 1: Onboard Broadcom 57504 Quad Port 10/25GbE SFP28
- NIC 2: Intel X710 Quad Port 10GbE SFP+ Adapter
- Mgmt NIC: Broadcom 5719 Quad Port 1GbE BASE-T Adapter
2x100G Routers, CGNAT, and BNGs
- CPU: Intel Xeon Platinum 8351N 2.4G, 36C/72T
- RAM: 4x 16GB RDIMM
- Storage: 480GB SSD SATA Mixed Use
- NIC 1: Onboard Broadcom 57504 Quad 10/25GbE SFP28
- NIC 2: Broadcom 57508 Dual 100GbE QSFP Adapter (non-PPPoE)
For PPPoE, change to 2x Intel E810-CQDA2 Dual 100GbE QSFP28 Max 100G - Mgmt NIC: Broadcom 5719 Quad Port 1GbE BASE-T Adapter

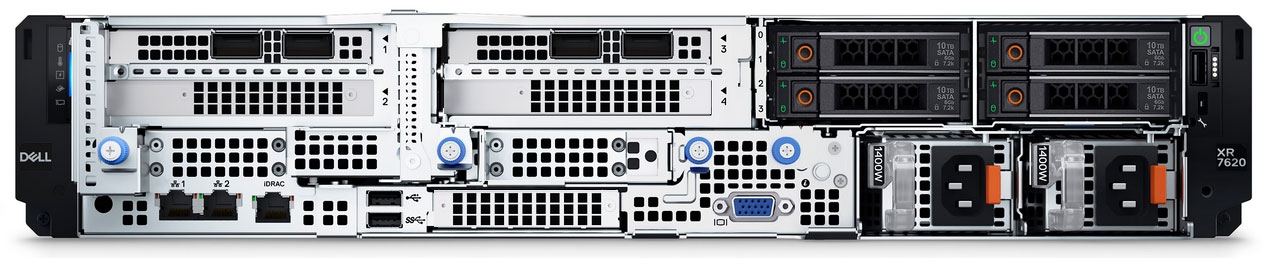

XR7620 Server Configuration
4x100G Routers, CGNAT, and BNGs (non-PPPoE)
- CPU: 2x Intel Xeon Gold 6442Y 2.6G, 24C/48T
- RAM: 8x 16GB RDIMM, 4800MT/s Single Rank
- Storage: 480GB SSD SATA Mixed Use
- NIC: 2x Broadcom 57508 Dual Port 100GbE QSFP Adapter (non-PPPoE)
- Mgmt NIC: Embedded 2 x 1 GbE LOM
4x100G Routers, CGNAT, and BNGs (with PPPoE support)
- CPU: 2x Intel Xeon Gold 6442Y 2.6G, 24C/48T
- RAM: 8x 16GB RDIMM, 4800MT/s Single Rank
- Storage: 480GB SSD SATA Mixed Use
- NIC: 2x Intel E810-2CQDA2 Dual 100GbE QSFP28 Max 200G
- Mgmt NIC: Embedded 2 x 1 GbE LOM
These options are recommended and have been verified by netElastic.
Other Server Models, Vendors, and Sizes Available. Contact Sales to learn more.
